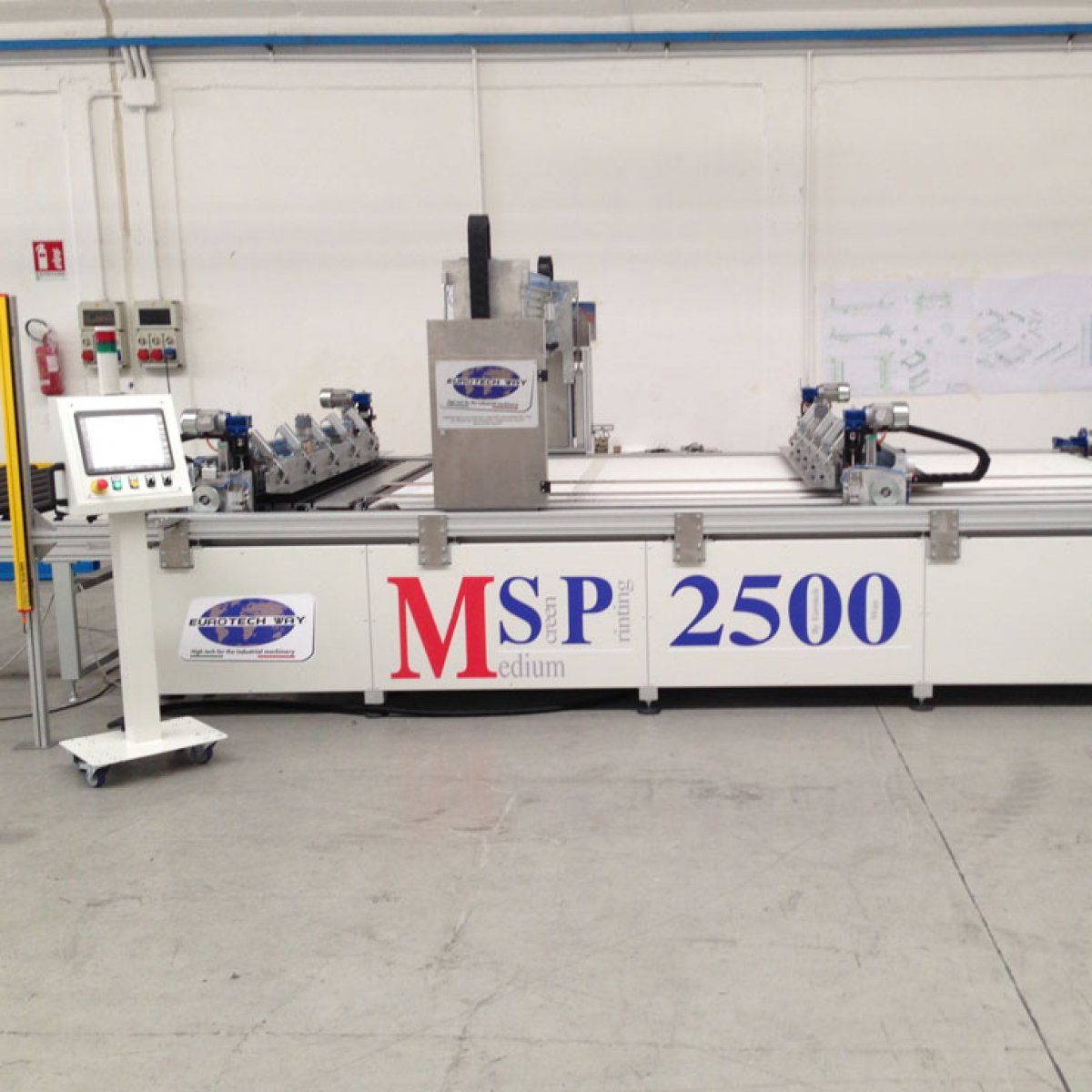

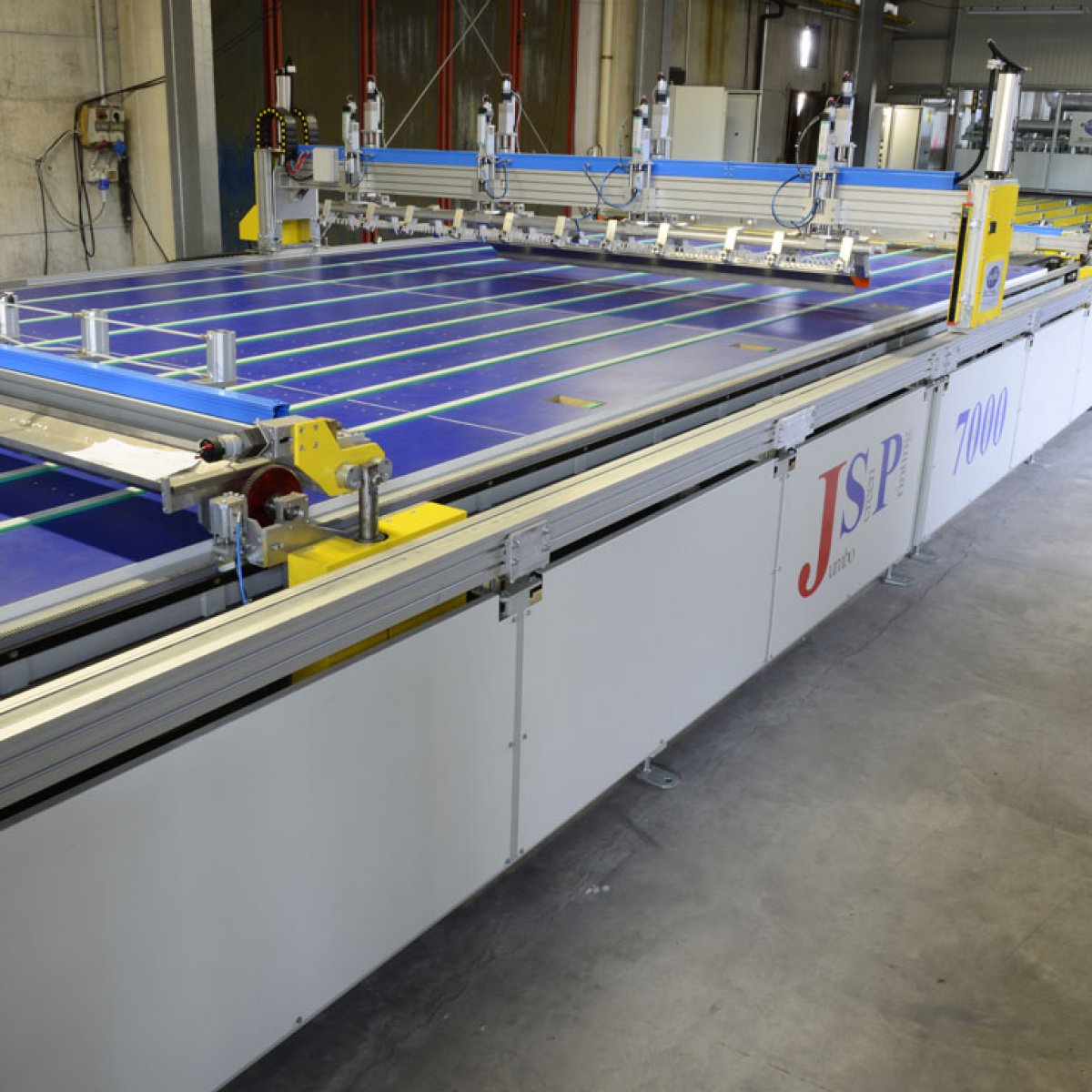

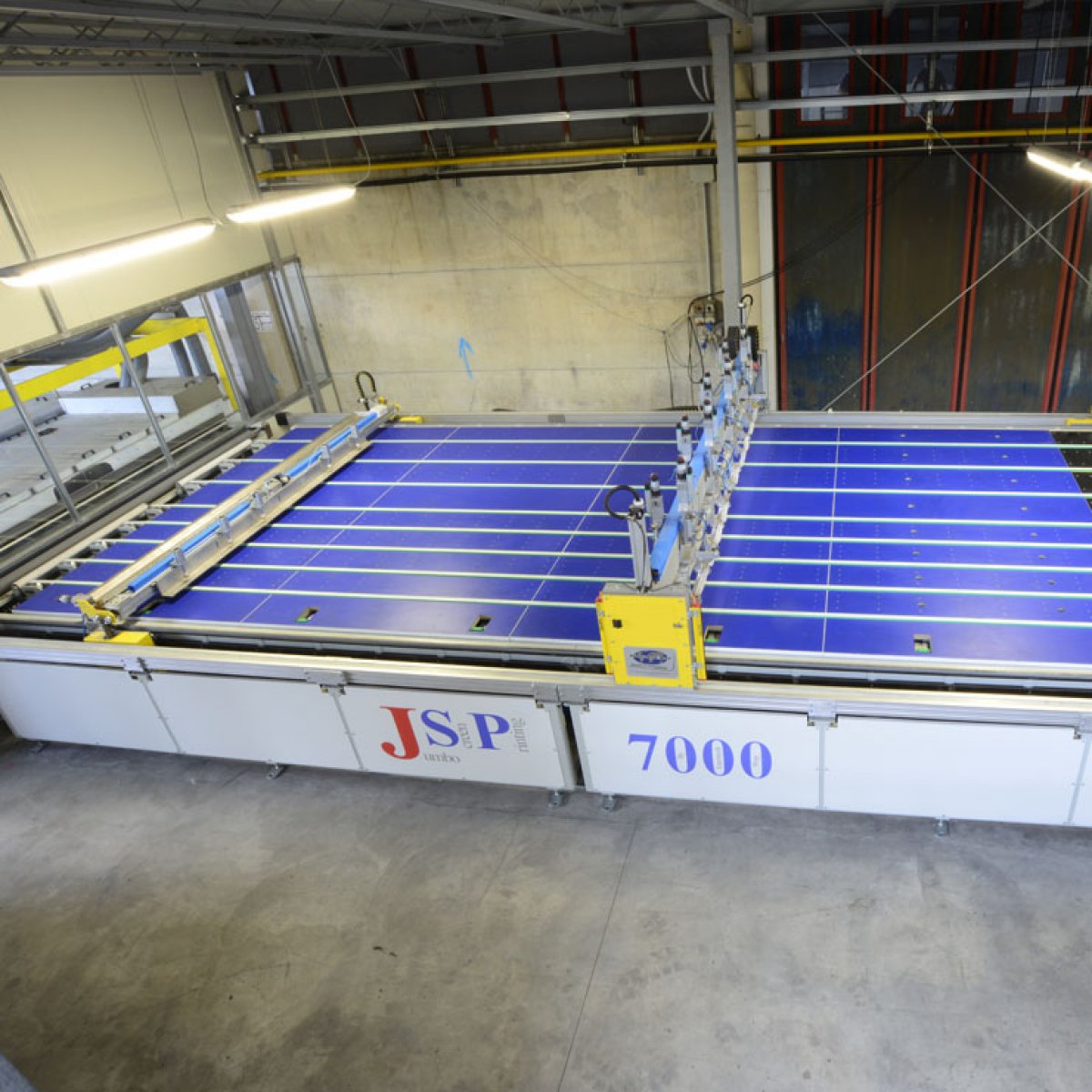

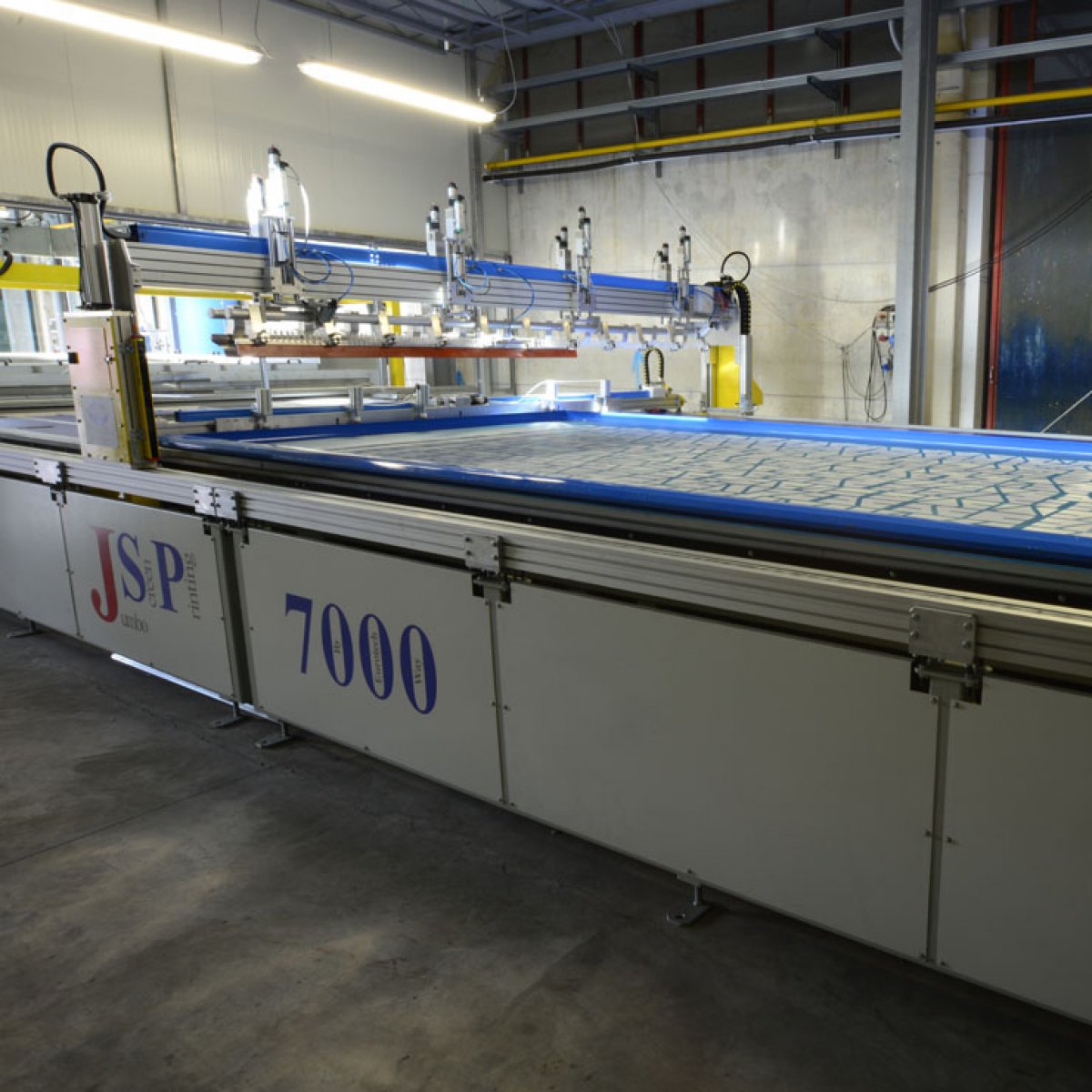

SCREEN PRINTING MACHINES
The cutting-edge automatic screen-printing machines designed and manufactured by Eurotech Way are suitable for flat glass screen printing.
AUTOMATIC CENTRING AND CONVEYING UNIT

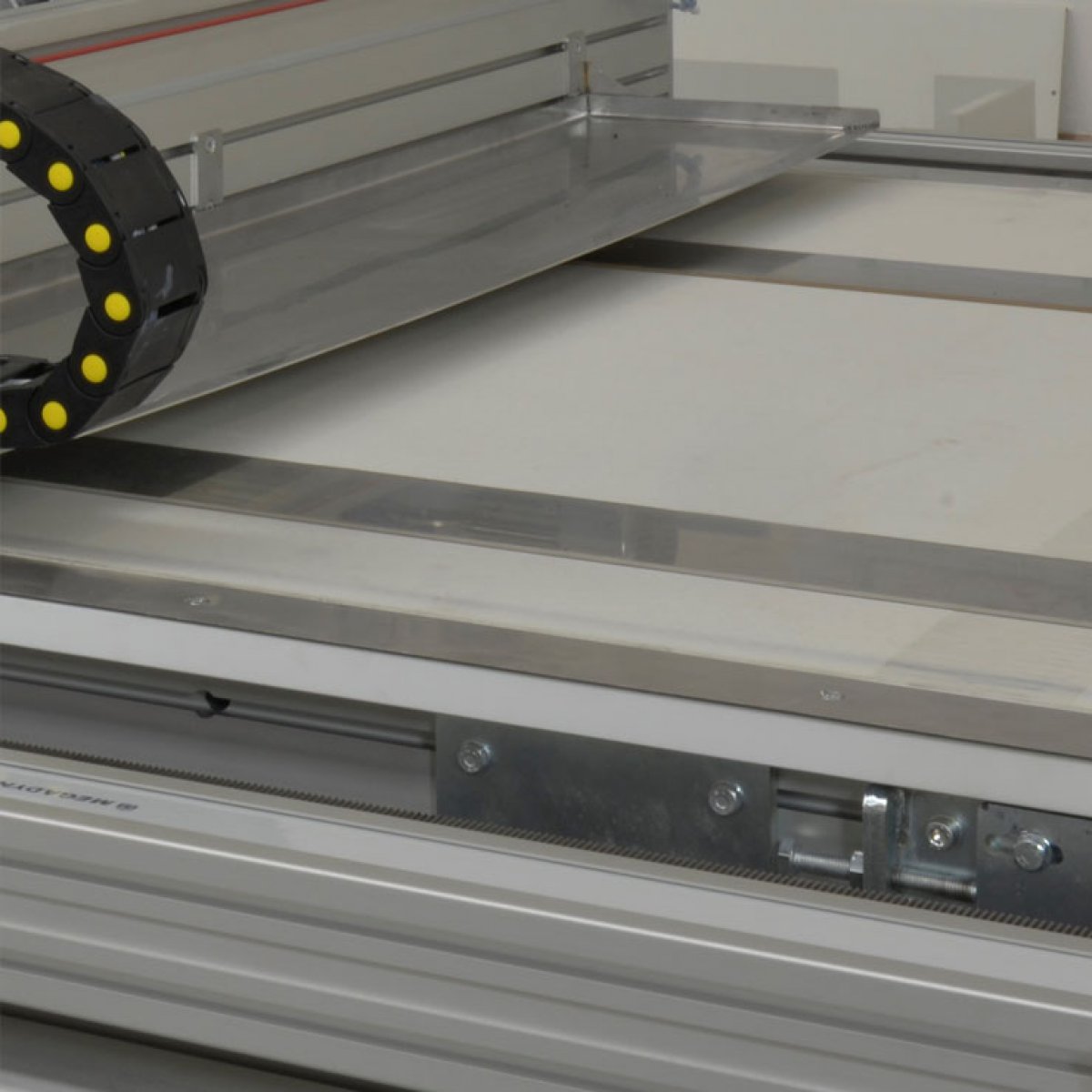

- Platform for glass placement through a motorised belt equipped with a glass incoming belt conveyor and a glass outgoing belt conveyor to move the lateral sliding guides also to the central area.
- Self-centring of the glass panel on three sides.
- Possibility of processing one or more glass sheets on the same conveyor belt.
- Possibility of cantering the glass panel by placing it on the side deemed to be the most comfortable for the operator.
- Automatic system with linear potentiometers for lateral guides repositioning with parameter recallable from the recipe stored on the PLC.
- Vision system for screen centring on the glass panel.
SCREEN SUPPORT UNIT
- Full accessibility to the printing area.
- Screen support with automatic adjustments on all sides and adjustable by operator touch-screen interface
- Automatic adjustment of the screen support up&down movement.
- Positioning of the screen at height according to the thickness to be printed, which can be recalled from a recipe by operator interface.
- Application system with automatic adaptation to the tension of the screen mesh.
- The out-of-contact system is operated separately thus allowing to operate the screen up-movement time directly by the operator interface.
- Out-of-contact movement compensation system
- Screen blocking by means of pneumatic cylinders.

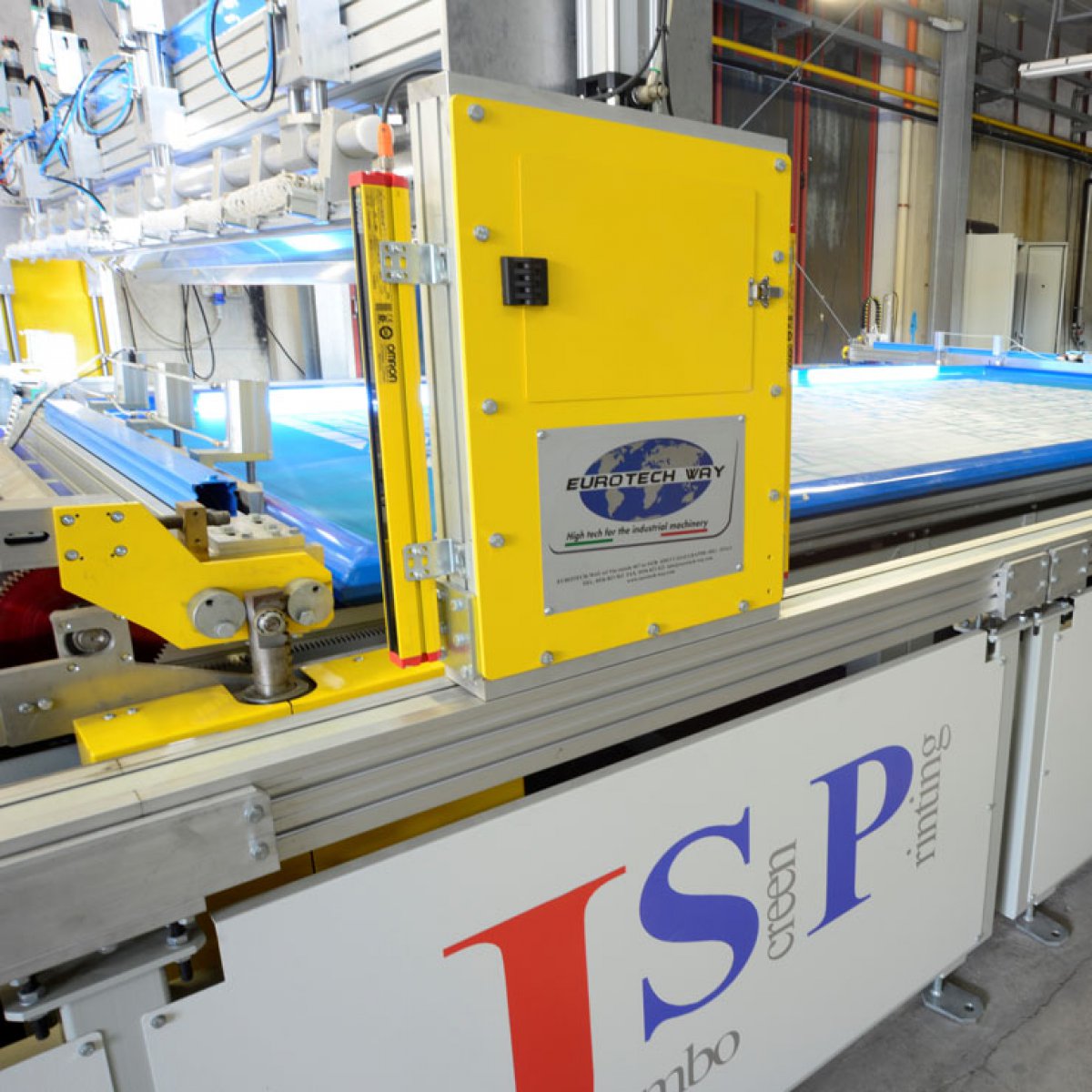

PRINTING BRIDGE UNIT

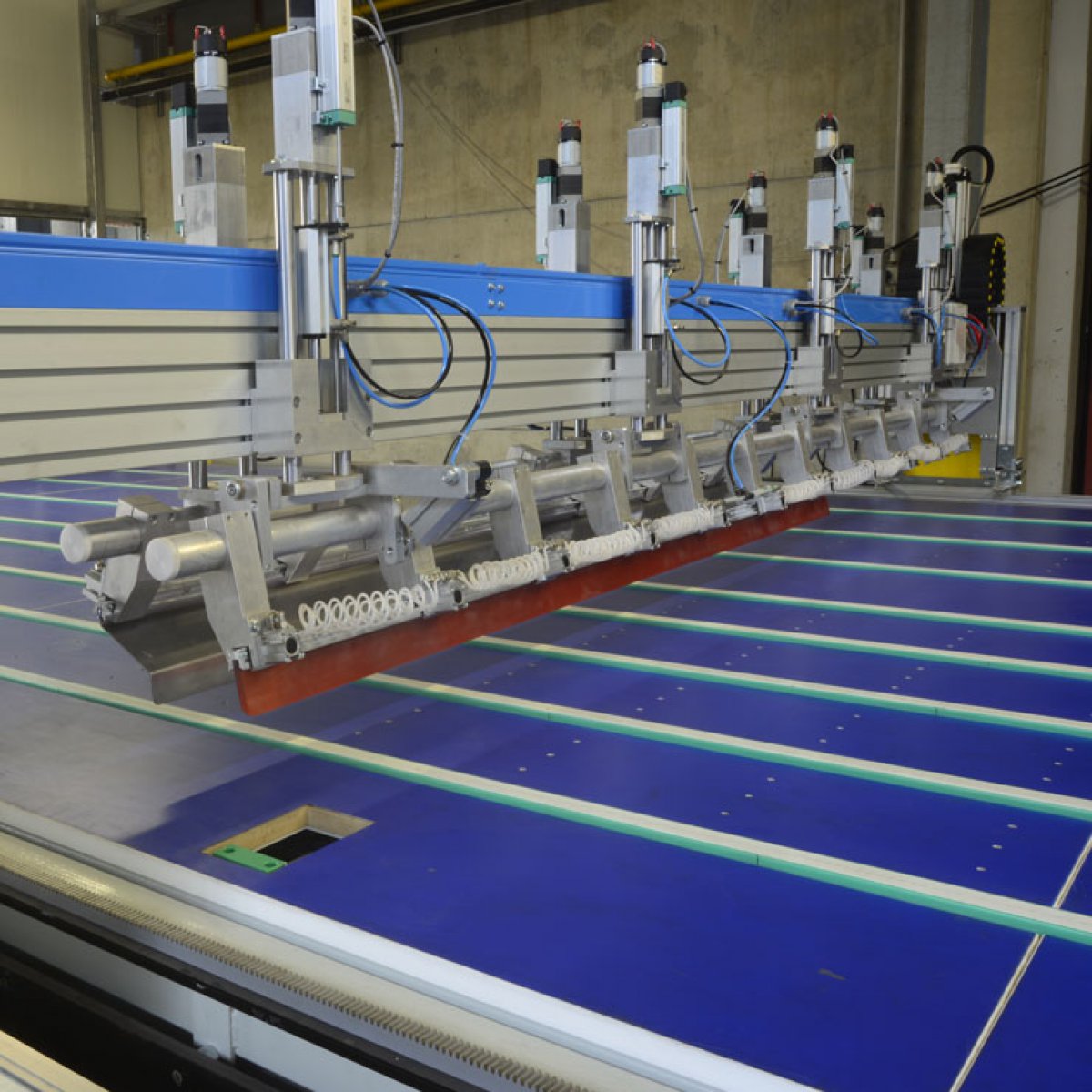

- Fully automatic adjustment of the application blade also with transversal inclination.
- Fully automatic steel spreading scraper also with transversal inclination.
- Automatic adjustment of the application blade pressure, depending on the thickness of the glass to be printed.
- Inclusive of anti-drip system.
- Blade blocking through pneumatic cylinders.
- Print bridge motorization through linear guides integral with the structure.
- Print bridge lifting-up independent from the screen movement.
- No suspended structure hindering the operator during setting and adjustment operations
- The operator interface with touch-screen panel and PLC allow to manage all movements and automatisms, and also to store production data and related settings, to recall them as recipes, if the need arises.
- Glass thickness: from 3 mm to 19 mm
- Maximum printable size: 1850 x 4000 mm
- Minimum printable size: 50 x 450 mm
- Installed power: 12 KwThe cutting-edge automatic screen-printing machines designed and manufactured by Eurotech Way are suitable for flat glass screen printing.
